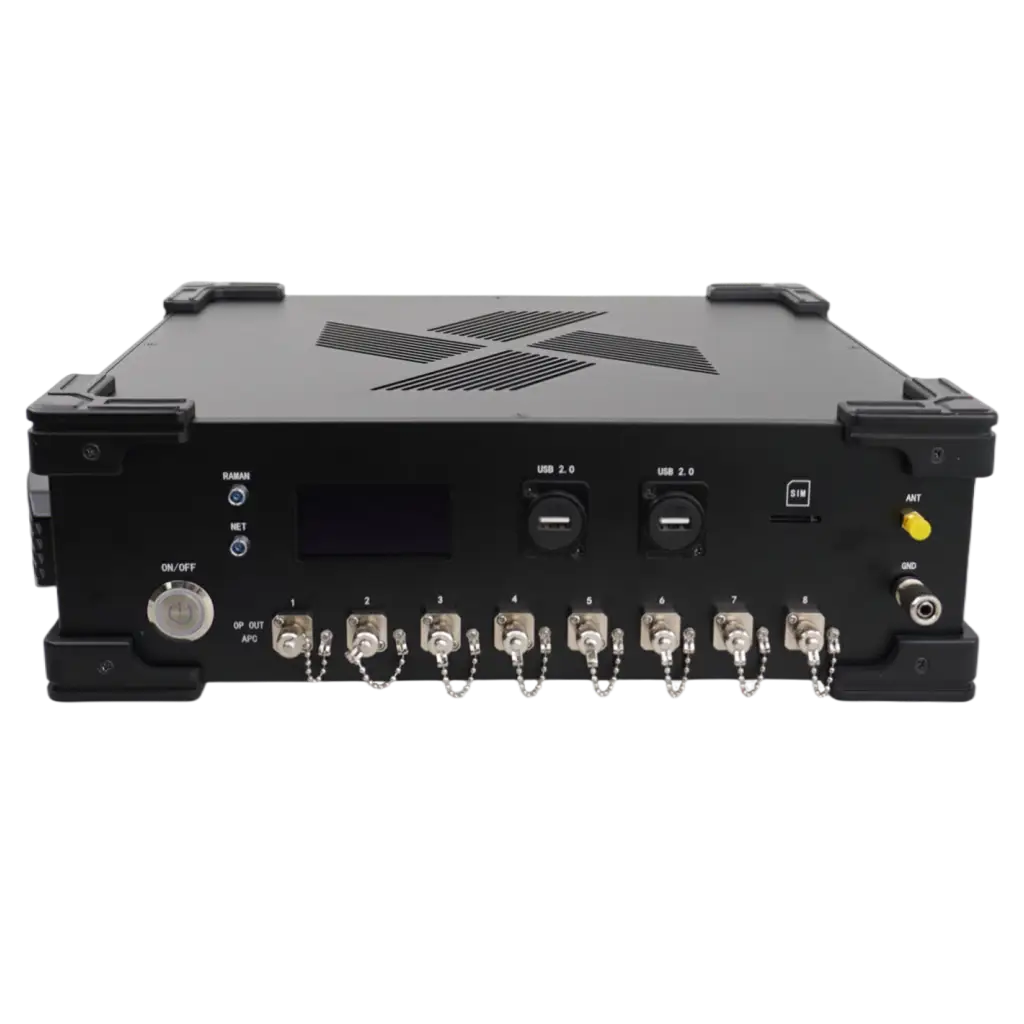

TG60 Optical Cable Intelligent Line Analyzer
Overview
The G-Link TG60 Optical Cable Intelligent Line Analyzer leverages cutting-edge cloud computing, mobile internet, and Internet of Things (IoT) technologies to revolutionize optical cable route identification and fault location. By simply tapping manhole covers or the ground along the cable route, the TG60 can quickly and accurately pinpoint the ground position of the cable and any fault points, while also mapping the cable’s geographical path. Integrating optical switch and OTDR functionalities, it allows for comprehensive measurement of multiple optical cables, providing detailed attenuation information and enabling highly efficient management and operation & maintenance (O&M) of optical networks.
Key Features
- Long-Distance Measurement: Offers an impressive maximum measurement range of 60km.
- Integrated Fault Location: Combines vibration positioning with OTDR measurement to swiftly identify fault locations.
- Rapid Cable Identification: Utilizes a vibration tool for tactile detection, quickly identifying the target optical cable among multiple lines.
- Mobile Internet Connectivity: Supports mobile internet access to the main unit, with an intuitive smartphone APP interface for single-person operation of all measurement functions.
- GPS Mapping Integration: The mobile APP displays the latitude and longitude of tapping points, cable distance, and visualizes the cable’s routing on a map.
- Cloud Data Storage: All test data is stored in the cloud, allowing for convenient access anytime, anywhere, and facilitating effortless resource management.
Specifications:
| Feature | Description |
|---|---|
| Model | TG60 |
| Wavelength | 1310nm |
| OTDR Function | Dynamic Range: >38dB |
| Event/Attenuation Blind Zone: ≤2/12 | |
| Wavelength | 1550nm |
| OTDR Function | Dynamic Range: >36dB |
| Event/Attenuation Blind Zone: ≤2/12 | |
| Max. Measurement Range | 60km |
| GPS Positioning Error | ±10m |
| Power Supply | Internal Lithium Battery; AC Charger (100V-240V) |
| Battery Life | ≥8 hours of continuous operation |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative Humidity | 0% to 95% (non-condensing) |
| Dimensions (L x W x H) | 234 x 177 x 65mm |
| Weight | 1.5kg |
Applications
The G-Link TG60 is a versatile and essential tool for a wide range of optical cable management tasks in various environments:
- Cable Laying Environments: Ideal for managing cables in pipelines, tunnels, and manholes.
- Equipment Room Construction: Facilitates efficient setup and verification of optical cables within equipment rooms.
- Line Reconstruction: Supports the planning and execution of optical line upgrades and modifications.
- Line Maintenance: Essential for routine inspection, troubleshooting, and preventive maintenance.
- Emergency Repair: Enables rapid and accurate fault localization for quick service restoration.
- Optical Cable Splicing: Ensures precise alignment and verification during cable splicing operations.
- Optical Cable Resource Survey: Provides comprehensive data for efficient management of optical cable assets.
- On-Duty Maintenance: Supports daily operational checks and immediate response to issues.
- Optical Cable Standardized Management: Contributes to improved standardization and organization of optical network infrastructure.
Revolutionize Your Optical Cable Management!
Leverage the power of intelligent technology to enhance your optical cable operations. Contact us today to discover how the G-Link TG60 can transform your network maintenance and management!
