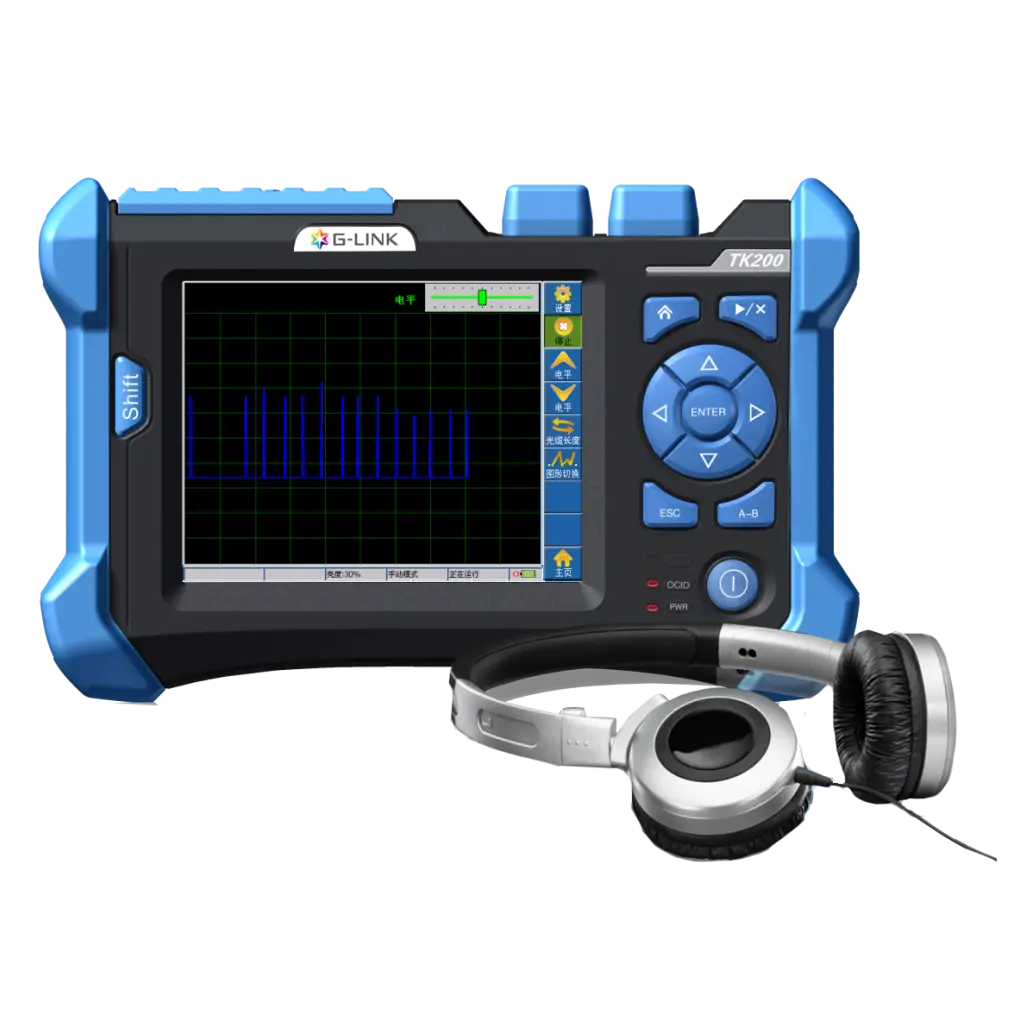

TK200 Series Optical Cable Identifier (OCID)
Overview:
The G-LINK TR600 series Optical Time Domain Reflectometer (OTDR) is a high-performance portable instrument designed for efficient and precise fiber optic network testing. With its compact and lightweight design, coupled with powerful and user-friendly operation, the TR600 is an indispensable tool for optical cable construction, maintenance, and monitoring. It is engineered to meet the comprehensive measurement needs of FTTx, metropolitan area networks, and backbone networks.
Key Features
- User-Friendly Interface: Combines touch screen and button operation for intuitive and easy use.
- Extended Working Time: Supports a low-power consumption mode for prolonged operation in the field.
- Long-Distance Sensing: Capable of detecting mechanical vibrations in optical cables over distances of hundreds of kilometers.
- Flexible Operation Modes: Offers both automatic and manual working modes for versatile application.
- Visual & Audio Indication: Locates target optical cables in complex environments through audio and visual signals (bar graph/ECG mode selectable).
- Strong Environmental Adaptability: Performs reliably in various line conditions, including cables with PC, APC, or broken ends.
- Non-Destructive Testing: Ensures high accuracy identification without causing damage to the fiber.
- High Identification Accuracy: Delivers precise and reliable results for confident cable identification.
Detailed Specifications:
| Feature | Description |
|---|---|
| Model | TK200-40/N, TK200-100/N |
| Measurement Method | Single-fiber test |
| Wavelength | 1550nm |
| One-way Cable Loss | TK200-40/N: 10dB; TK200-100/N: 20dB |
| Max. Test Distance | TK200-40/N: 40Km; TK200-100/N: 100Km |
| Initial Blind Zone | No blind zone |
| Cable End Return Loss Requirement | TK200-40/N: <40dB; TK200-100/N: <20dB |
| Signal-to-Noise Ratio | >25dB |
| Fiber Type | SM (Single Mode) |
| Optical Connector | FC/APC |
| Display Screen | 5.6-inch Touch Screen |
| Input Mode | Touch Screen LCD + Buttons |
| Visual Output | Vibration amplitude, ECG mode |
| Audio Output | Sound (corresponds to disturbance intensity) |
| Power Supply | DC12V/3A |
| Battery | Polymer Lithium Battery, 7.4V, 4200mAh x 2; Continuous working time ≥ 10 hours |
| Power Consumption | <6W |
| Dimensions (HxWxD) | 65 x [Width] x [Length] (Specific width/length not provided in source) |
Notes: 1. Adding a reflector (reflectivity >-3dB) to the end increases the one-way cable loss by 5dB. 2. Adding a reflector (reflectivity >-3dB) to the end increases the maximum test distance by 20km. The above options only apply to TK200-40/N.
Applications
The G-Link TK200 Series Optical Cable Identifier is an indispensable tool for a variety of applications requiring precise optical cable identification and fault location:
- Optical Cable Identification: Accurately identifies target cables within bundles or complex networks.
- Fiber Optic Network Construction: Facilitates efficient and error-free installation of new fiber optic infrastructure.
- Fiber Optic Network Maintenance: Essential for routine checks, troubleshooting, and rapid repair of existing fiber lines.
- Fault Localization: Helps pinpoint specific fault locations, including breaks and damaged sections, for quicker resolution.
- Troubleshooting in Challenging Environments: Particularly effective in scenarios with broken cables or APC-terminated lines where other identifiers may struggle.
