The G-Link FSW Series Miniature Optical Switch is a key component for next-generation all-optical networks. Engineered for industry-leading performance, it combines low insertion loss with high stability in a compact mechanical package.
- Versatile Configurations: Available in 1×1, 1×2 (T/D), and 2×2 (B/BA/T/A) configurations to suit various routing needs.
- Superior Performance: Features excellent return loss (≥50dB for SM) and low crosstalk (≤ -55dB), ensuring minimal signal interference.
- Robust Operation: Designed to operate reliably in harsh temperatures ranging from -20°C to +70°C.
- Flexible Control: Supports Latching and Non-Latching control types with standard TTL/5V drive.

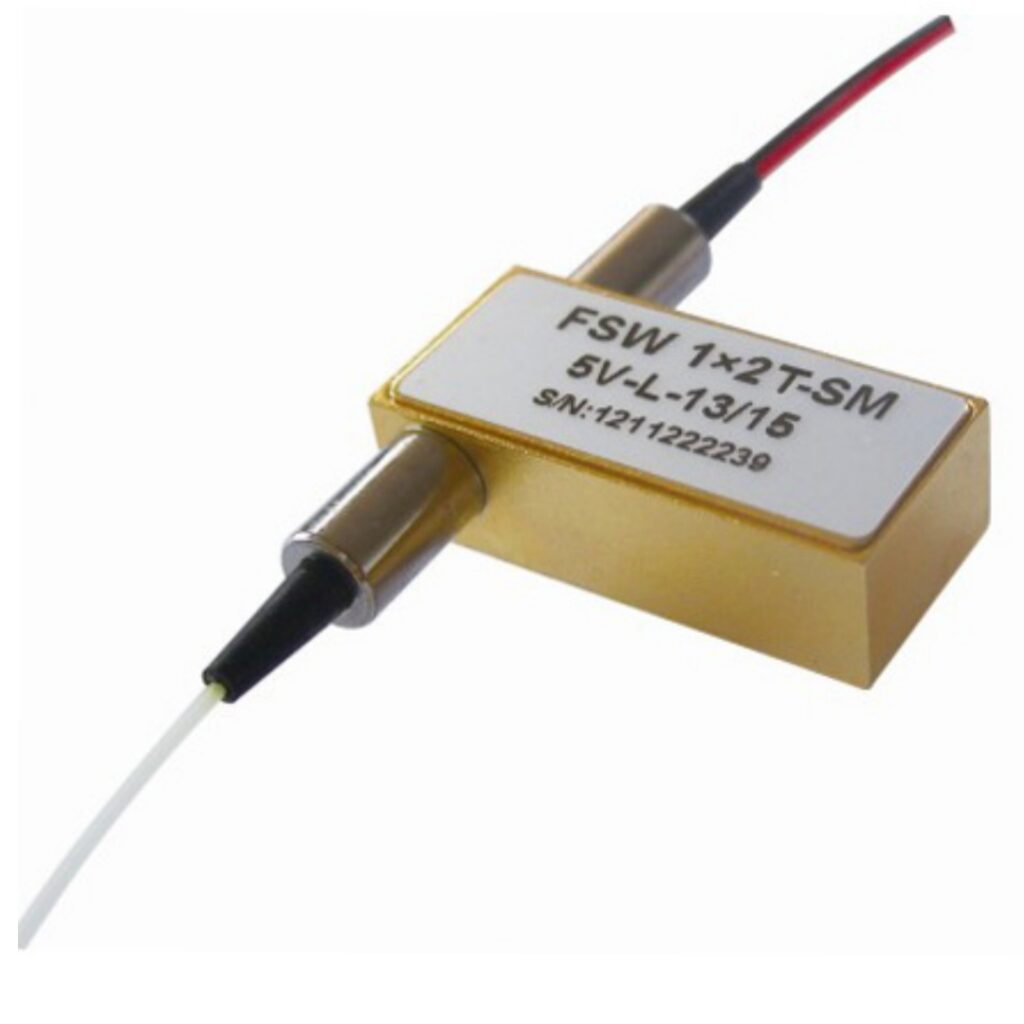

FSW 1x2T-SM

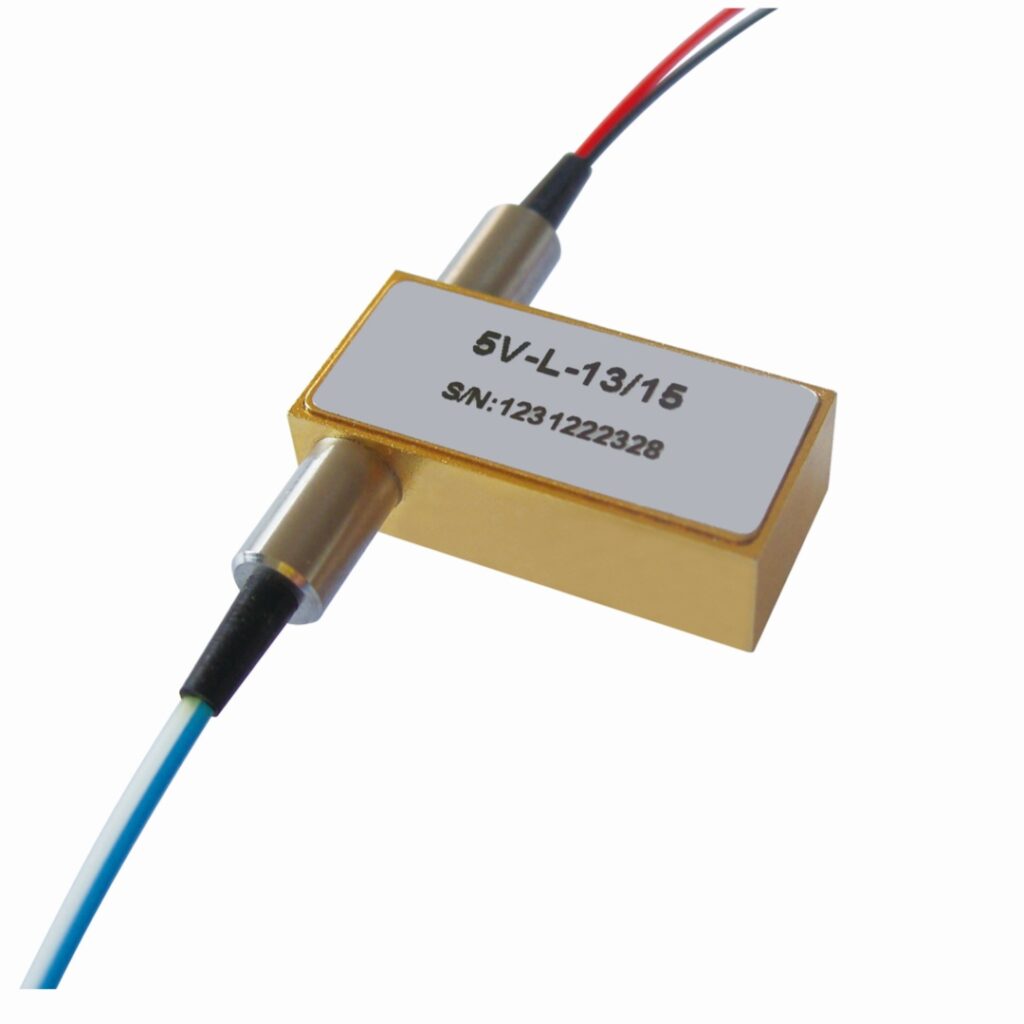

FSW 2x2B-SM

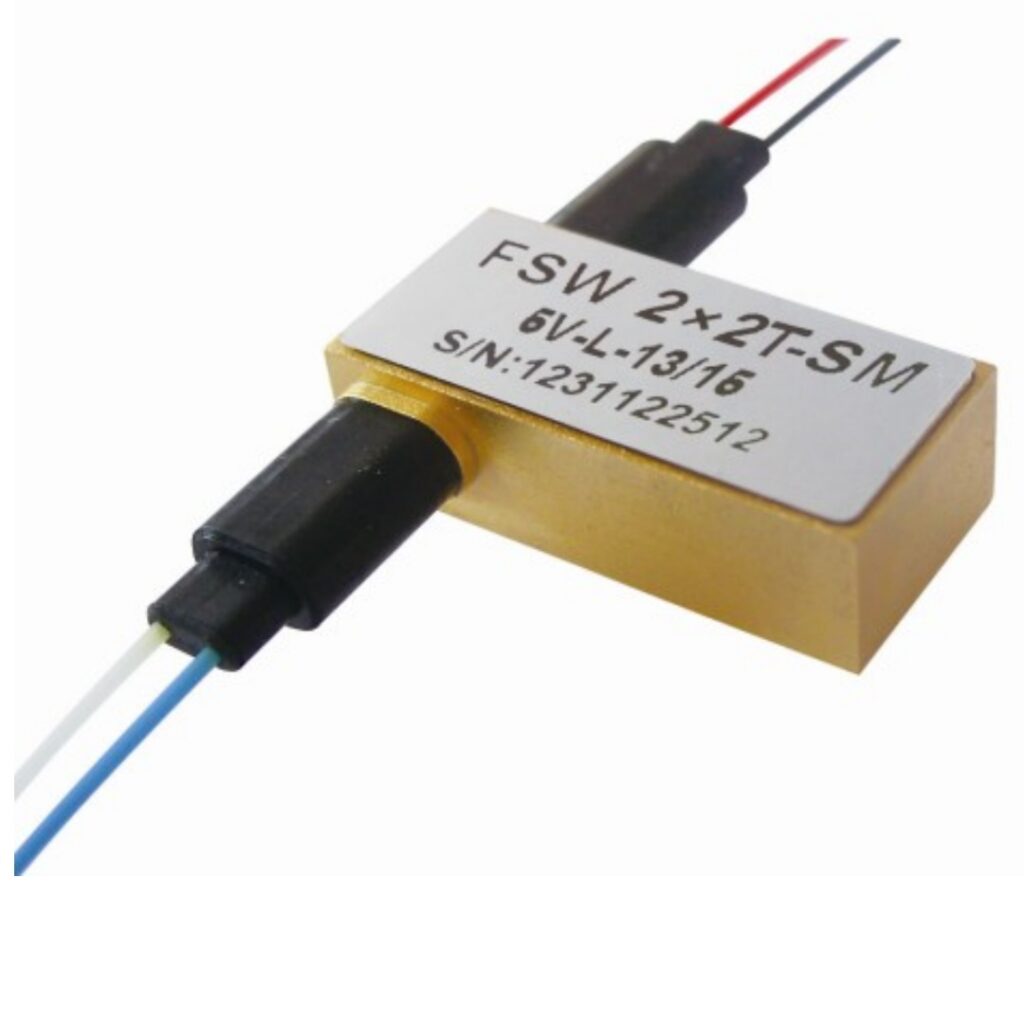

FSW 2x2T-SM

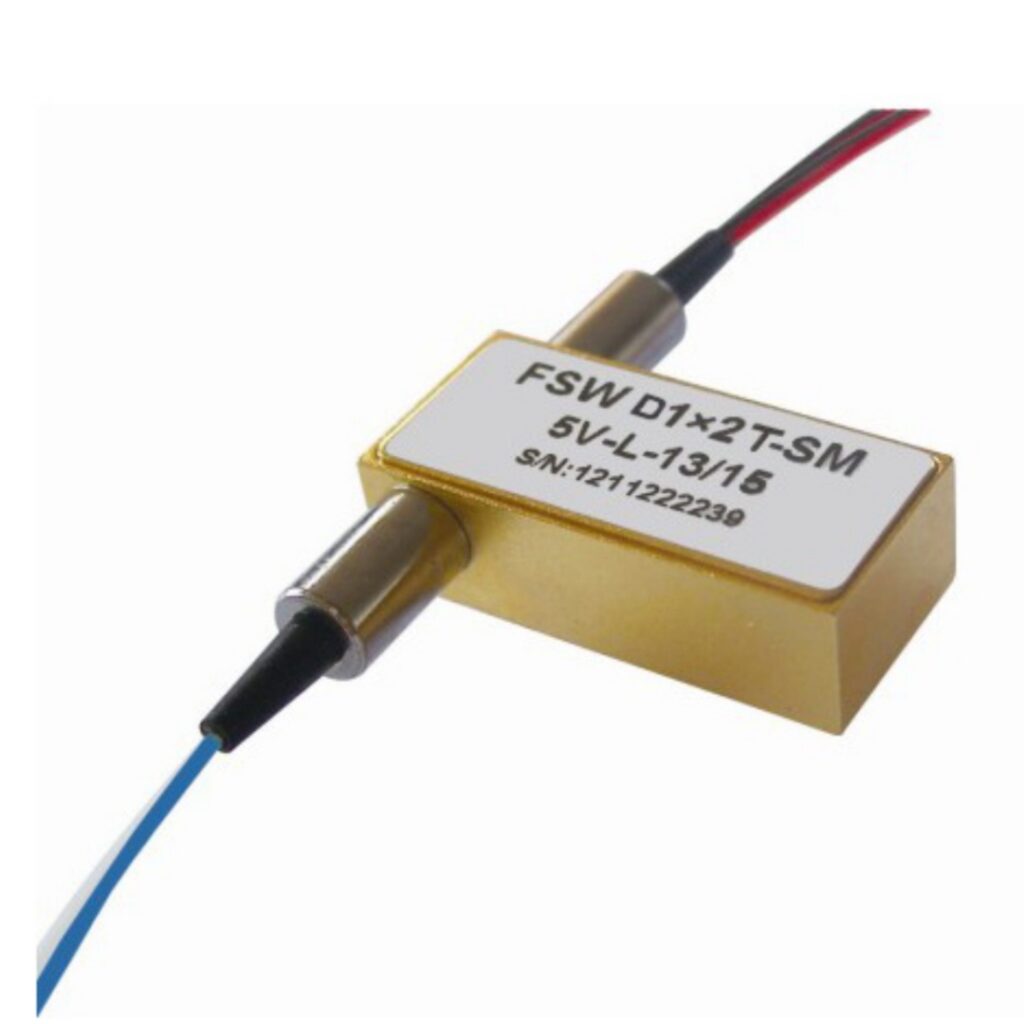

FSW D1x2-SM

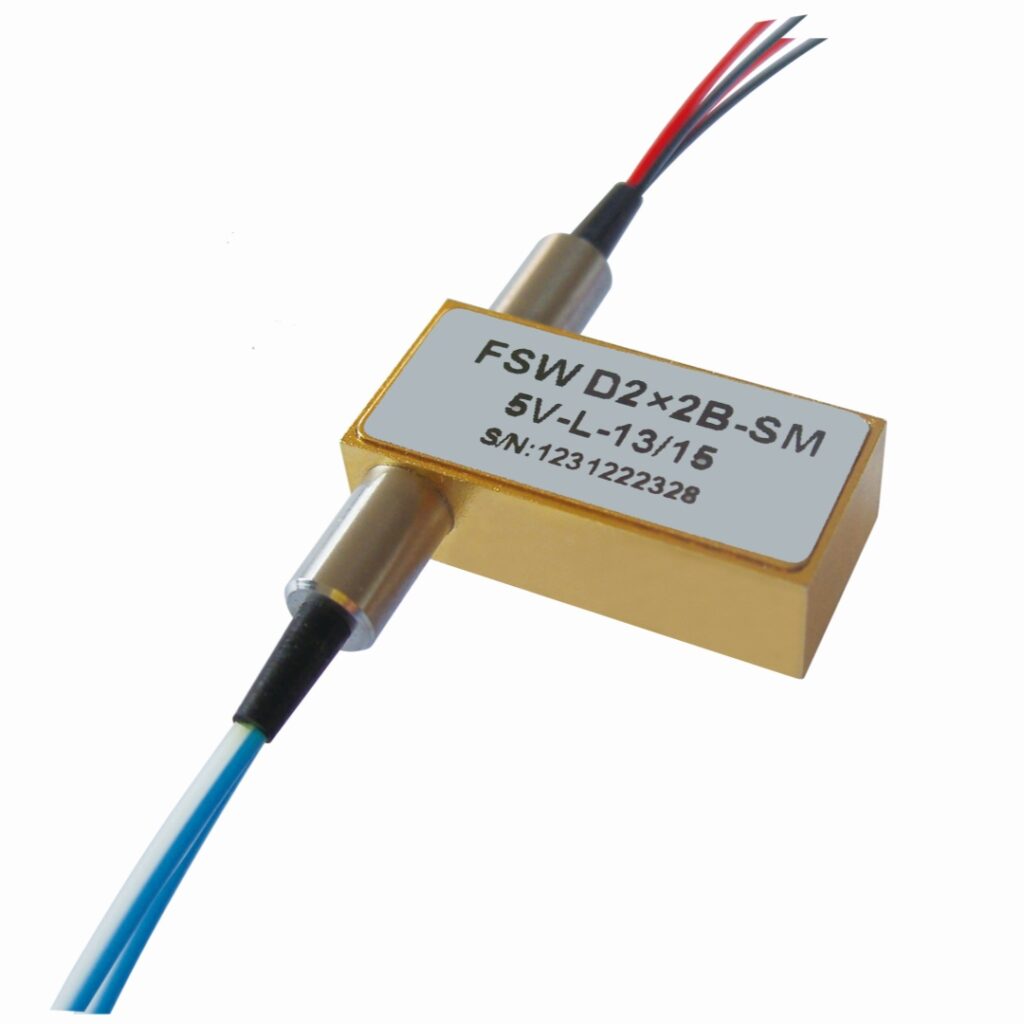

FSW D2x2B-SM

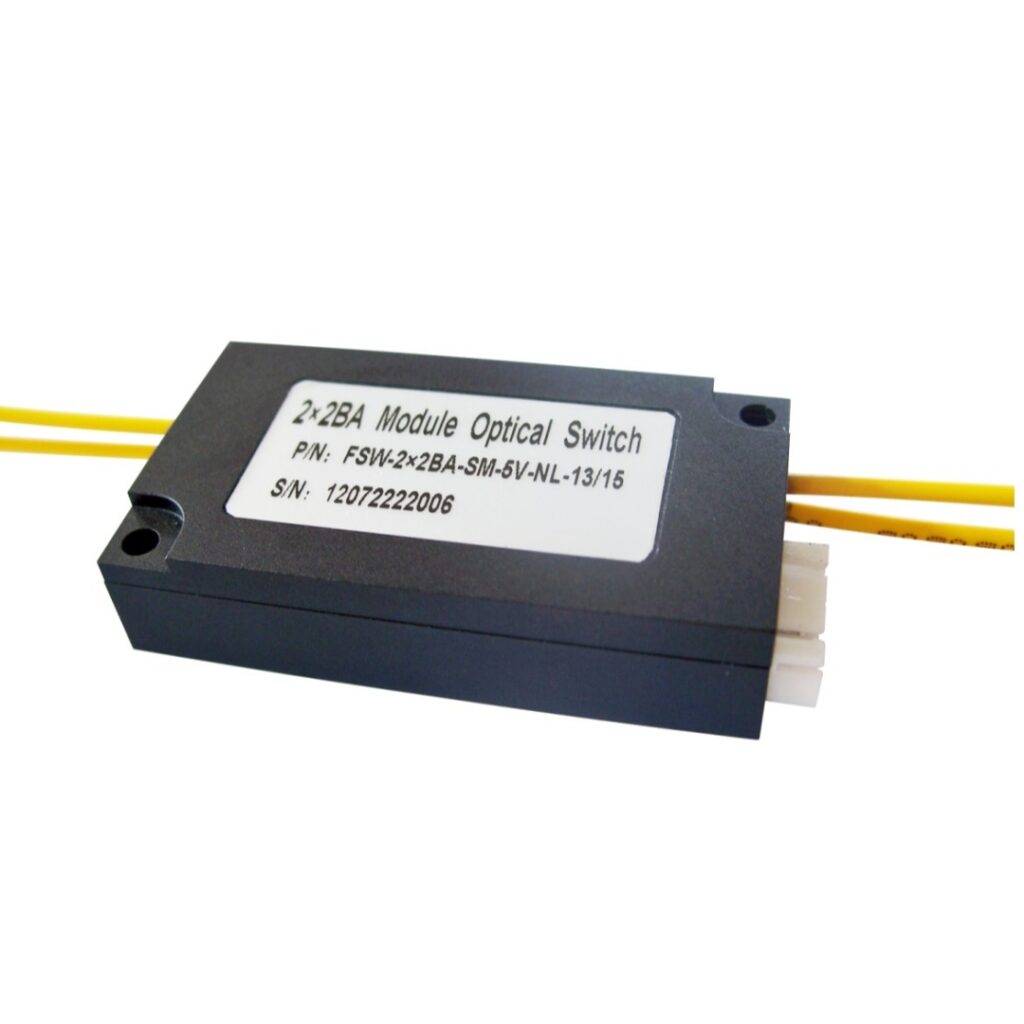

FSW 2x2BA-SM
Common Pin Definition
| Pin No. | Description | Function |
|---|---|---|
| V+ | Drive Voltage Input | Typically 5V DC or 3.3V DC (as per specs) |
| GND | Ground | Common Ground |
| N/A | Not Applicable | Not connected or unused |
Switching Control Logic
| Control Type | Pin Code / Control Pin | Status (State 1) | Status (State 2) | Remarks |
|---|---|---|---|---|
| Non-Latching | Pin 3–4 (Electric Drive) | OPEN | CLOSE | Requires continuous power for Status 2 |
| Non-Latching | Pin 7–8 (Status Sensor) | OPEN | CLOSE | Status Sensor |
| Latching | Pin 2 (CLOSE) | N/A | V+ | Momentary pulse sets Status 2 |
| Latching | Pin 6 (OPEN) | V+ | N/A | Momentary pulse sets Status 1 |
| Latching | Pin 8–9 (Electric Drive) | OPEN | CLOSE | Status is maintained without continuous power |
| Latching | Pin 2–3 (Status Sensor) | CLOSE | OPEN | Status Sensor |
| Parameter | Specification | Note |
|---|---|---|
| Wavelength Range | 850nm, 1310nm, 1550nm, or User Specified | |
| Insertion Loss (IL) | ≤0.8 dB | D2x2B ≤1.0 dB |
| Return Loss (RL) | SM: ≥50 dB; MM: ≥30 dB | |
| PDL | ≤0.05 dB | |
| Crosstalk | SM: ≤−55 dB; MM: ≤−45 dB | |
| Switching Time | <5 ms | |
| Repeatability | ≤±0.02 dB | |
| Durability | ≥3×107 cycles | |
| Max Optical Power | 500 mW | |
| Operating Temperature | -20°C ~ +70°C | |
| Storage Temperature | -40°C ~ +80°C | |
| Drive Voltage | 5V or 3.3V |
Optical Network Protection: Critical for path switching and self-healing rings.
System Monitoring: Enables real-time monitoring of optical cable performance.
Test & Measurement: Automated testing systems for optical components.
- R&D Laboratories: Ideal for optical transmission experiments and research.
| Code | Description | Options |
|---|---|---|
| 1 | Switch Type | 1x1, 1x2T, D1x2, 2x2T, 2x2B, D2x2B, 2x2A, 2x2BA |
| 2 | Fiber Mode | SM (9/125), MM5 (50/125), MM6 (62.5/125) |
| 3 | Control Type | L (Latching), NL (Non-Latching) |
| 4 | Wavelength | 850, 1310, 1550, 1310/1550, etc. |
| 5 | Connector | FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, Pigtail |
| 6 | Tube Type | 0.9mm, User Specified |
| 7 | Fiber Length | 1.0m, User Specified |
| 8 | Voltage | 5V, 3.3V |
