1. Why Carry Five Tools When One G-Link SW100 Mini OTDR Does It All?
We have spent years supporting field engineers and we’ve seen the same struggle: technicians climbing ladders with heavy bags filled with an OTDR, a light meter, a VFL, and a separate RJ45 tester. We believe there is a more efficient way.

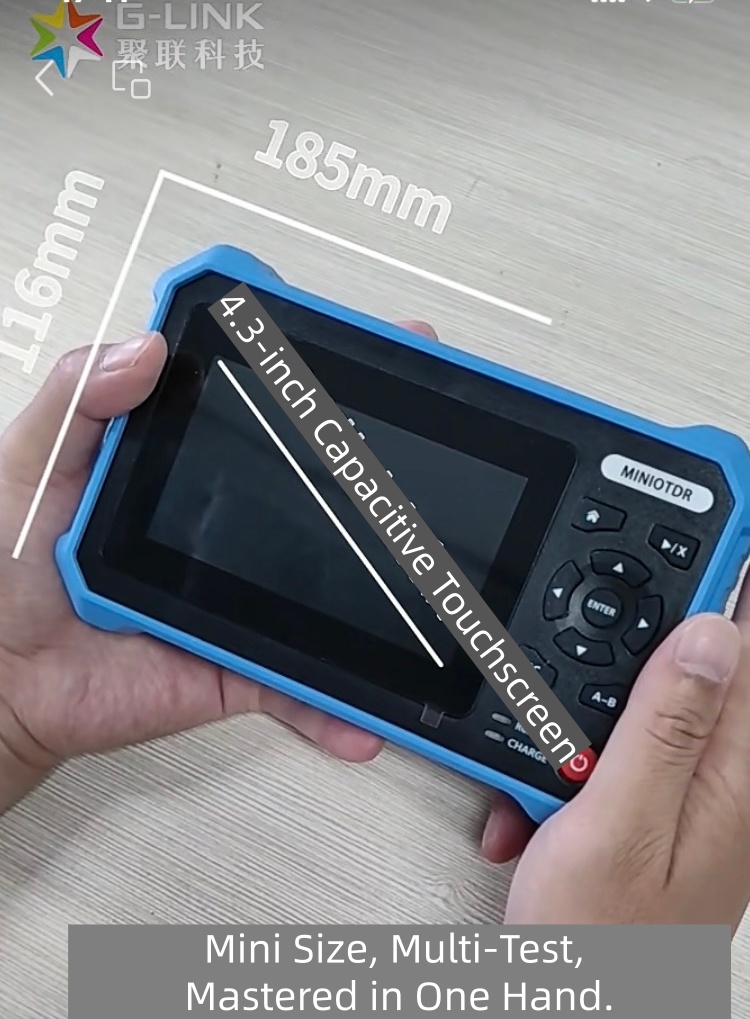

The G-Link SW100 Mini OTDR was specifically designed to eliminate this burden. By integrating 9 essential functions into a rugged device that weighs less than 500g, we are redefining what a “toolbox” looks like for the modern FTTX professional.
What is the G-Link SW100 Mini OTDR? The G-Link SW100 Mini OTDR is a multi-functional handheld fiber optic tester optimized for FTTX installation and maintenance. It integrates 9-in-1 capabilities, including an OTDR (30dB dynamic range), Event Map (gMAP), Optical Power Meter (OPM), Optical Light Source (OLS), Visual Fault Locator (VFL), RJ45 Cable Sequence & Length testing, and an LED Flashlight. It is the industry’s choice for compact, all-in-one diagnostics in hybrid fiber-copper environments.
2. What are the 9 Essential Functions of the SW100 Series?
We have engineered the G-Link SW100 Mini OTDR to be the “Swiss Army Knife” of fiber optics. Here is a breakdown of how it streamlines your workflow:

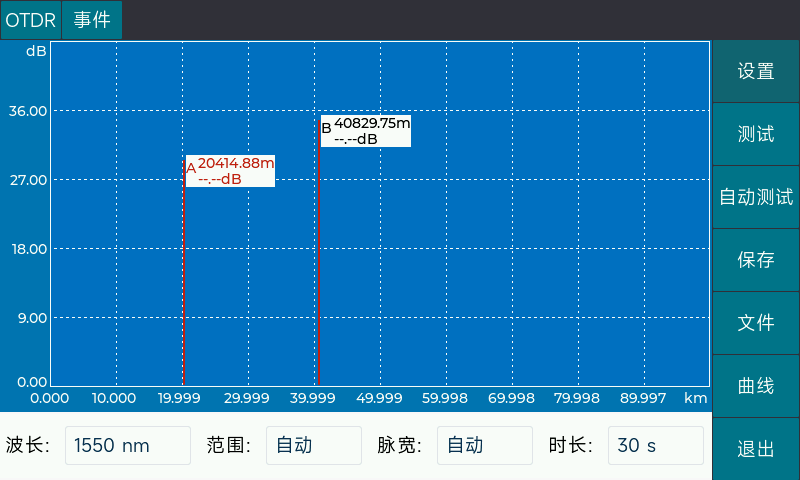

9-in-1 Functionality
| Function Category | Tools Included | Practical Benefit for You |
| Optical Testing | OTDR & Event Map (gMAP) | Locate fiber breaks and loss points via intuitive icons. |
| Signal Verification | OPM & OLS | Measure absolute power and total link loss. |
| Fault Location | VFL (Red Light) | Visually pinpoint bends or breaks in patch cords. |
| Copper Testing | RJ45 Sequence & Length | Verify home Ethernet wiring standards up to 300m. |
| Utility Tools | LED Flashlight | Work safely in dark basements or wiring closets. |
3. Why is Integrated RJ45 Testing a Game-Changer for Technicians?
One unique feature we are particularly proud of is the integrated RJ45 testing. In many FTTX scenarios, the fiber signal is perfect, but the user still can’t connect because of a faulty Ethernet cable. Traditionally, you’d need a second device.
With the G-Link SW100 Mini OTDR, we allow you to test T568A/B wiring standards and cable length directly on the same screen. We have seen our clients reduce their “On-Site Time” by 30% simply by eliminating the need to switch between different instruments.
4. How Does the SW100 Mini OTDR Resolve Your Field Testing Pain Points?
Troubleshooting in the field presents unique challenges. We have engineered the SW100 to tackle them head-on:
- Online Testing Needs: Our SW100-SV40F model supports 1625nm online testing with a built-in filter, allowing you to monitor active networks without disrupting the service—a feature usually reserved for larger professional OTDRs.
- Ease of Use: Don’t have an OTDR expert on-site? Our Auto OTDR mode handles all parameter settings, so anyone can identify a fault within seconds.
- Documentation: We support standard .SOR, PNG, and PDF formats, allowing you to generate professional reports for clients immediately after testing.
5. What are the Technical Specifications of the G-Link SW100?
| Feature | G-Link SW100 Mini OTDR Specification | Benefit |
| Dynamic Range | 20dB to 30dB | Optimal for FTTX and Access Networks |
| Wavelengths | 1310/1550nm or 1625nm (Live) | Versatility for all single-mode projects |
| RJ45 Capability | Sequence & Length (up to 300m) | Complete home network verification |
| Battery Life | Long-lasting rechargeable Lithium | Full day of field work (8+ hours) |
| Storage | SD Card / Internal | Massive trace capacity for large projects |
6. How to Maintain Your G-Link SW100 Mini OTDR for Longevity?
To ensure your G-Link SW100 Mini OTDR lasts for years, we recommend these professional best practices:
- Port Protection: Always keep the dust cap on when the laser is not active.
- Connector Cleaning: According to our SW100 Operation Manual, we recommend using alcohol-moistened lint-free wipes to clean the universal interface before every test.
- Battery Care: Charge the lithium battery at least once every three months if the device is stored for a long period.
7. Frequently Asked Questions: Mastering the G-Link SW100
A: Yes! When you choose the SW100-SV40F model (1625nm), we include a built-in filter that allows for live fiber testing without damaging the network.
A: A Mini OTDR like our G-Link SW100 Mini OTDR focuses on portability and multi-function integration (like RJ45), while standard models like the TR600 are built for long-haul backbone spans.
A: Absolutely. We have integrated direct PDF generation so you can save results and share them via the USB port instantly.
8. Ready to Upgrade Your Fiber Diagnostics?
Stop guessing and start measuring with precision. The G-Link SW100 Mini OTDR is more than just a tester; it’s a commitment to professional excellence.
